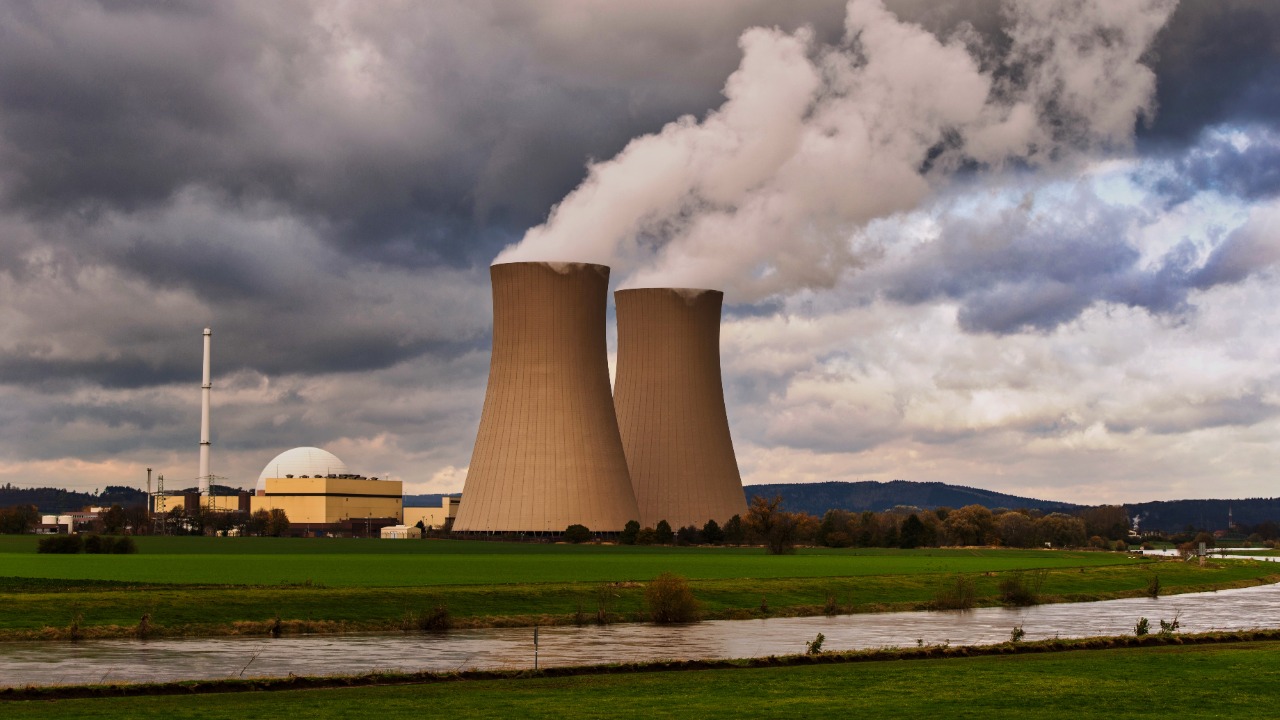

Nuclear power plants may look similar from the outside, but the reactors operating inside them can follow very different engineering designs. Some allow water to boil directly inside the reactor vessel, while others use gas, heavy water, graphite, liquid metal, or separate cooling circuits to control heat.
Despite this variety, one design clearly dominates commercial nuclear power: the pressurized water reactor, commonly known as a PWR.
According to the International Atomic Energy Agency’s Power Reactor Information System, 308 of the world’s 415 operating nuclear power reactors were PWRs as of June 5, 2026. That means nearly three-quarters of operating reactors use the same basic pressurized-water principle. Together, these units represent approximately 298 gigawatts of net electrical capacity.
The PWR’s worldwide popularity is not based on a single advantage. It reflects decades of operational experience, standardized technology, strong industrial support, effective heat transfer, and a design that separates radioactive reactor coolant from the steam sent to the turbine.
What Is a Pressurized Water Reactor?
A pressurized water reactor uses ordinary water for two important purposes. The water carries heat away from the reactor core, and it also slows down neutrons so that the nuclear chain reaction can continue efficiently.
Inside the reactor vessel, uranium fuel undergoes nuclear fission. The splitting of uranium atoms releases heat, which raises the temperature of the water circulating through the core. However, this water is maintained under extremely high pressure, preventing it from boiling even when its temperature rises above 300°C.
The U.S. Nuclear Regulatory Commission compares the basic idea to a pressure cooker. Raising the pressure increases the temperature at which water boils, allowing the reactor coolant to absorb large quantities of heat while remaining liquid.
This highly pressurized water circulates through what is called the primary coolant loop. It travels from the reactor core to a steam generator, where its heat is transferred to water in a separate secondary system.
How a PWR Generates Electricity
The electricity-generation process begins in the reactor core, where controlled fission releases thermal energy. Pumps move the heated primary coolant through large pipes toward one or more steam generators.
Inside each steam generator, the hot primary water passes through thousands of tubes. Water surrounding those tubes belongs to the secondary circuit. Heat moves through the tube walls and causes the secondary water to boil, creating steam without allowing the two water systems to mix.
The steam then flows toward a turbine, where its pressure turns large turbine blades. The rotating turbine drives an electrical generator, producing electricity for the grid. After leaving the turbine, the steam enters a condenser, where it cools and becomes liquid water again. That water is pumped back toward the steam generator so the cycle can continue.
The Nuclear Regulatory Commission’s PWR guide explains that the reactor’s pressurized primary loop carries heat to the steam generator, while the secondary loop produces the steam used by the turbine. This separation is one of the defining characteristics of the PWR design.
Why the Water Must Remain Under Pressure
Water normally boils at 100°C under standard atmospheric pressure. A nuclear reactor must operate at much higher temperatures to transfer heat effectively and generate steam efficiently.
In a large PWR, reactor coolant may reach approximately 325°C. The primary circuit is therefore maintained at roughly 150 times atmospheric pressure. A component called a pressurizer helps regulate this pressure and prevents the primary coolant from boiling during normal operation.
Keeping the primary coolant liquid provides stable heat transfer through the reactor core. The water can continuously absorb heat from the fuel assemblies and transport it to the steam generators.
Pressure control is therefore not simply a secondary operating feature. It is central to the entire reactor concept and explains why the design is called a pressurized water reactor.
Why PWRs Became the Most Common Reactor Type
The PWR design originally developed from technology intended for nuclear-powered submarines. Naval reactors needed to be compact, dependable, and capable of producing large amounts of energy within a limited space. That early development helped establish a technical foundation that was later adapted for commercial electricity generation.
As more countries adopted PWRs, manufacturers, regulators, engineers, fuel suppliers, and plant operators gained experience with the same general technology. This encouraged greater standardization and created an international supply chain for reactor components, fuel assemblies, maintenance services, and technical expertise.
The World Nuclear Association reports that approximately 300 operable PWRs are used for electricity generation, with several hundred additional units used for naval propulsion. It also identifies the PWR as the most common nuclear power reactor design worldwide.
Several major nuclear energy markets rely heavily on PWR technology. France built much of its standardized nuclear fleet around pressurized-water designs. The United States operates both PWRs and boiling water reactors, but PWRs form the larger group. China’s rapidly expanding nuclear program also relies primarily on pressurized-water technologies, including domestic and internationally influenced designs.
Russian-designed VVER reactors belong to the same broad family. Although their engineering details differ from Western PWRs, they also use pressurized light water as coolant and moderator while producing steam through a separate secondary circuit.
The Importance of Separate Water Circuits
One of the PWR’s most recognizable features is the separation between the reactor coolant and the turbine steam system.
Water flowing directly through the reactor core can contain radioactive materials created during plant operation. In a PWR, that primary water remains inside the reactor cooling system and steam-generator tubes. It does not normally travel through the turbine.
The secondary water absorbs heat through the steam generator but does not pass through the reactor core. It becomes steam, turns the turbine, returns to liquid form in the condenser, and circulates back toward the steam generator.
The U.S. Energy Information Administration explains that hot radioactive water flows inside steam-generator tubes, while separate nonradioactive water surrounding those tubes boils to produce steam.
This arrangement requires additional equipment, including steam generators, pressurizers, coolant pumps, and extensive piping. However, it also limits the parts of the plant that normally come into contact with radioactive primary coolant.
How a PWR Differs From a Boiling Water Reactor
The boiling water reactor, or BWR, is another widely used light-water reactor. It also uses ordinary water as both coolant and neutron moderator, but its steam cycle is different.
In a BWR, water boils directly inside the reactor vessel. The resulting steam travels from the reactor to the turbine, eliminating the separate steam generators used in a PWR.
This gives the BWR a more direct steam system, but it also means that steam passing through the turbine originates inside the reactor vessel. The turbine system therefore requires different radiological controls and maintenance procedures.
The PWR keeps the reactor coolant and turbine steam in separate circuits. The BWR uses one main water-steam circuit between the reactor and turbine. Both designs have operated successfully for decades, but the PWR has achieved much broader global adoption. Current IAEA data lists 43 operating BWRs compared with 308 operating PWRs.
PWR Fuel and Reactor Core Design
Most commercial PWRs use enriched uranium dioxide fuel formed into small ceramic pellets. These pellets are stacked inside long metal tubes to create fuel rods. Numerous rods are arranged together into fuel assemblies, which are positioned vertically inside the reactor core.
A typical commercial PWR may contain approximately 150 to 200 fuel assemblies, although the exact number varies by reactor model and generating capacity. Control rods containing neutron-absorbing materials can be inserted into the core to reduce or stop the fission reaction.
The World Nuclear Association’s nuclear fuel guide states that PWRs account for roughly two-thirds of installed nuclear generating capacity worldwide. Modern Western PWR fuel assemblies commonly use a square lattice arrangement, with many current designs built around a 17-by-17 rod layout.
Safety Features of the PWR Design
PWRs rely on several layers of engineered safety systems. Control rods can rapidly reduce the chain reaction, while boron dissolved in the coolant can help regulate reactor power. Emergency cooling systems are designed to provide water to the core if normal cooling is interrupted.
The reactor vessel, primary cooling equipment, and steam generators are typically located inside a reinforced containment structure. This structure is designed to isolate radioactive material from the surrounding environment during abnormal conditions.
The physical behavior of water also contributes to reactor control. When primary coolant becomes hotter or less dense, it slows fewer neutrons effectively, which tends to reduce the rate of fission. This negative feedback characteristic helps oppose rapid increases in reactor power, although active safety systems and trained operators remain essential.
Will PWRs Remain Dominant?
Advanced reactors are being developed using molten salt, liquid metal, high-temperature gas, and other cooling technologies. Small modular reactors are also attracting attention because they may offer smaller generating units, factory manufacturing, and more flexible deployment.
However, many current large-reactor projects and several small modular reactor concepts continue to use pressurized-water technology. Developers can build upon established fuel supply chains, licensing experience, operating knowledge, and existing safety standards rather than introducing a completely unfamiliar reactor system.
The PWR may not remain dominant forever, but its influence is likely to continue for decades. With 308 operating units and many more years of commercial and naval experience, it remains the reactor design most closely associated with nuclear power around the world.
